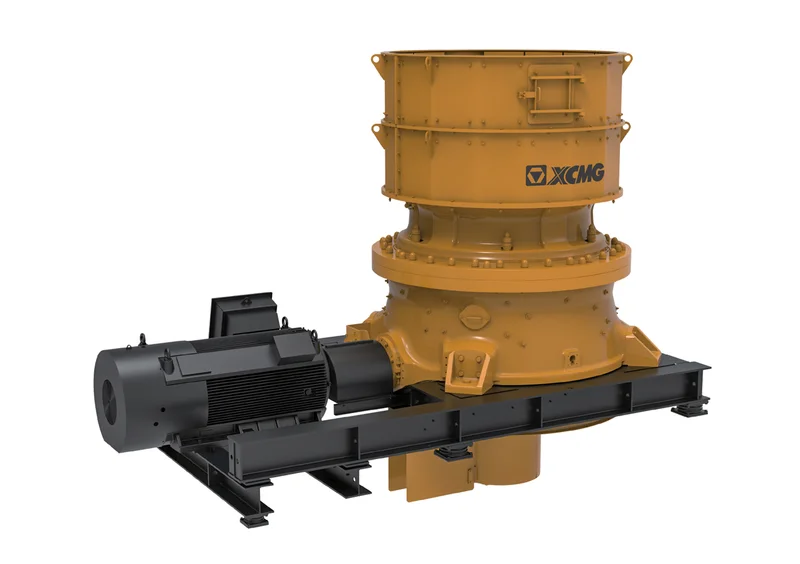

195–601 t/h XCMG Single-Cylinder Cone Crusher — 450 mm Feedstock
Large-size single-cylinder cone crusher for second-stage and third-stage crushing. 450 mm maximum feedstock, 25–54 mm discharge opening, 195–601 t/h throughput. 250 kW motor through belt drive, 1490 ±5 rpm horizontal shaft speed. 19.3 t (±500 kg) machine weight, 2255 × 2100 × 3665 mm footprint. Hydraulic single-cylinder adjustment for discharge gap and tramp-iron release. Specified for mining, water-engineering, metallurgy and building-material aggregate lines.
The XCMG XGY1100DII is a large-size single-cylinder cone crusher built for second-stage and third-stage crushing in aggregate, mining, metallurgy and building-material lines. 450 mm maximum feedstock, 25–54 mm discharge opening, 195–601 t/h throughput. 250 kW motor through belt drive, 1490 ±5 rpm horizontal shaft. 19.3 t (±500 kg) machine weight, 2255 × 2100 × 3665 mm footprint.
Single-cylinder hydraulic adjustment means discharge gap is set hydraulically rather than via mechanical shim packs — gap calibration takes minutes between shifts, and the same cylinder carries tramp-iron release if uncrushable material enters the chamber.
In the XCMG cone crusher line the XGY1100DII sits between the XGY1300D (315 kW, 110–662 t/h, 321 mm feedstock) and the higher-throughput XGY1300DII (315 kW, 330–790 t/h, 560 mm feedstock). It fits secondary crushing downstream of an XGE-series jaw crusher in stationary aggregate plants producing 200–600 t/h. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
Five points on the XGY1100DII that fit it to secondary and tertiary cone crushing in 200–600 t/h aggregate and mining plants: hydraulic adjustment, throughput band, line position, drive train, and sector fit.
Single hydraulic cylinder sets discharge gap and carries tramp-iron release. Discharge gap calibration is hydraulic — shim packs are not handled between shifts. The same cylinder lifts the mantle when uncrushable material enters the chamber, then resets without manual disassembly.
Rated 195–601 t/h productivity across the 25–54 mm discharge opening range. Suited for secondary crushing downstream of an XGE-series jaw crusher producing ≤450 mm output, and tertiary crushing in lines targeting 25–54 mm product sizing.
250 kW motor coupled via belt drive to a 1490 ±5 rpm horizontal shaft. Belt drive isolates motor from shock-load events at the crushing chamber. Standard belt consumables, no proprietary coupling required.
Mid-size in the XCMG single-cylinder cone series. The XGY1300D runs 110–662 t/h at 321 mm feedstock for fine crushing. The XGY1300DII steps up to 330–790 t/h at 560 mm feedstock for higher-volume secondary work. The XGY1100DII fits 200–600 t/h secondary work at 450 mm feedstock.
Specified for mining ore reduction, water-engineering aggregate supply, metallurgical pre-treatment lines, and building-material crushed-stone production. Hard-rock specification — pairs with XGE jaw crushers for primary and XGF impact crushers for limestone-class secondary work.
| Parameter | Unit | Value |
|---|---|---|
| Max. feedstock size | mm | 450 |
| Range of discharge opening | mm | 25–54 |
| Productivity | t/h | 195–601 |
| Driving type | - | Belt drive |
| Motor power | kW | 250 |
| Horizontal shaft speed | rpm | 1490 ±5 |
| Overall weight | kg | 19300 ±500 |
| Overall dimensions (L×W×H) | mm | 2255 × 2100 × 3665 |
