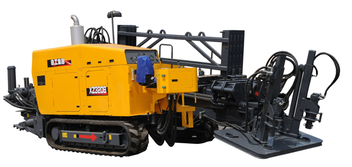

XZ320B                             Home>New equipment>Earthmoving equipment>Horizontal directional drill

>Excavator >Bulldozer >Wheel loader >Skid loader >Backhoe loader >Rotary drilling rig >Horizontal directional drill

Feature Parameter Back to the list --Check for other models-- XZ180 XZ320B XZ400 XZ400A XZ680 XZ1000 XZ1500 XZ3000A Dongfeng Cummins (160KW) engine, 320kN of pullback force, 12000N.m of Max.spindle torque, self-propelled rubber tracks chassis, automatic loading and unloading drill rod device, high strength box-type drilling frame, rotatable control board, strong floating dynamic jaw vice, onboard high-capacity mud pump (320L/min), and imported running reducer hydraulic motor and hydraulic main pump . 发动机型号 Engine model 6CTA8.3-C215 康明斯 CUMMINS 发动机额定功率 Engine rated power kW /rpm 160/2200 最大回拖/进给力 Max. Pull-push strength kN 320/200 动力头最大扭矩 Max.torque of power head N.m 12000 动力头转速 Spindle speed r/min 0～140 最大回扩孔直径 Max. Backreaming diameter mm φ800 钻杆长度(单根) Drilling rod length (single) m 3 钻杆直径 Drilling rod diameter mm φ73 钻进角度 Drilling angle ° 10～20 泥浆最大流量 Mud flow rate(max) L/min 320 泥浆最大压力 Mud pressure(max) bar 80 整机质量 Overall weight kg 12000 长×宽×高 Dimension( L×W×H) mm 7100×2300×2450
