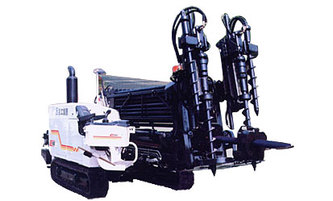

XZ180                             Home>New equipment>Earthmoving equipment>Horizontal directional drill

>Excavator >Bulldozer >Wheel loader >Skid loader >Backhoe loader >Rotary drilling rig >Horizontal directional drill

Feature Parameter Back to the list --Check for other models-- XZ180 XZ320B XZ400 XZ400A XZ680 XZ1000 XZ1500 XZ3000A Dongfeng Cummins (97KW) engine, 180kN of push-pull, 6000N.m of Max.spindle torque, motor dual speed chain push-pull system, self-propelled rubber tracks chassis, automatic loading and unloading drill rod device, rotatable control board, patent technology for floating vice, and onboard high-capacity mud pump (250L/min). Model   XZ180 Engine   CUMMINS Rated power kW 97 Max.pullback/thrusting kN 180/180 Spindle torque(max) N.m 6000 Spindle speed r/min 0-140 Backreaming diameter mm Ø600 Tubing length(single) m 3 Tubing diameter mm Ø60 Entry angle ° 10-22 Mud flow rate(max) L/min 250 Mud pressure (max) bar 80 Overall weight kg 10000 DIMENSION (LxWxH) mm 6400×2270×2340
