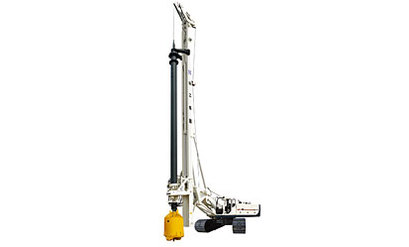

XR360                       Home>New equipment>Earthmoving equipment>Rotary drilling rig

>Excavator >Bulldozer >Wheel loader >Skid loader >Backhoe loader >Rotary drilling rig >Horizontal directional drill



Feature Parameter Back to the list                     --Check for other models--                         XG360                    XG450D                     XR150D                    XR220D                                                                               XR230C                    XR260D                     XR280C                    XR280D                    XR360                    XRS680                     XRS1050                                                model     XR360 Engine Model   CUMMINS QSM11-C400 Rated Power KW/rpm 298 Rotary Dvive Max. output torque kN·m 360 Rotary speed r/min 6～25 Max. Drilling Diameter With casing mm Ф2000 Without casing mm Ф2500 Winthout 1st mast mm Ф3000 Max. Drilling Depth m 96,81, 65 Pull-Down Cylinder Max. pull-down piston push KN 240 Max. pull-down piston pull KN 220 Max. pull-down piston stroke m 6.0 Main Winch Max. pulling force KN 320 Max. pulling speed m/min 72 Auxiliary Winch Max. pulling force KN 100 Max. pulling speed m/min ≥65 Mast Rake Side/forwards/backwards   ±4°/5°/15° Undercarrige Max. traveling speed KM/h 1.5 Max. grade ability % 40 Min. Clearance mm 425 Track shoe width mm 800 Distance between tracks mm 3500～4800 Hydraulic Systerm Working pressue Mpa 33 Overall Drilling Weight t 90 Dimension Working condition mm 11000×4800×24586 Transportation condition mm 18810×3500×3500
