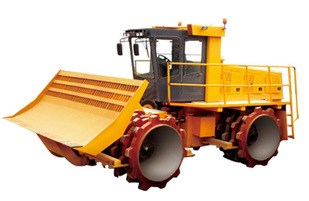

XL282J                             Home>New equipment>Road building equipment>Compactor

>Compactor >Cold recycling machine >Asphalt concrete paver >Asphalt mixing plant >Motor grader >Cold milling machine >Soil stabilizer mixing plant >Soil stabilizer

Feature Parameter Back to the list --Check for other models-- XS262 XS302 XS222 XS142 XS122 XS162 XS182-I XS202 XS202-I XS261 XS142J XS162J XS182J XS202J XS222J XS222JE XS202J-II XS262J XD31 XD41 XDH080J XSH050J YZC7 XD111 XD121 XD131 XD122 XD132 XD142 XP163 XP203 XP261 XP262 XP301 XP302 XL282J XL262J Item Unit XL282J Operation weight Kg 28000 Operation speed Km/h 0-10.7 Theoretical gradeability 　 100% Overall length mm 7680 mm Overall width mm 3800 mm Overall height mm 3660mm Min turning radius (outside) mm 6700 Shovel height mm 2000 Shovel width mm 3800 Max. lifting height mm 1000 Max. digging depth mm 120 Engine Model Shangchai-Cat C6121 Rated rev r/min 2200 Rated power KW 187 Transmission Hangzhou GearboxWG180 Drive axle Fenyi PR75.37J—Ⅱ Working pump PERMCO 1115432361 Integrated lubrication Beka MX—F7/14 Radiator Xinxiang XGSX04-29 Pilot valve Zhejiang Linhai 2TH6L06—01 Air conditioner Tianyi XGKT460W3
