XD41                             Home>New equipment>Road building equipment>Compactor

>Compactor >Cold recycling machine >Asphalt concrete paver >Asphalt mixing plant >Motor grader >Cold milling machine >Soil stabilizer mixing plant >Soil stabilizer

Feature

Parameter

Back to the list

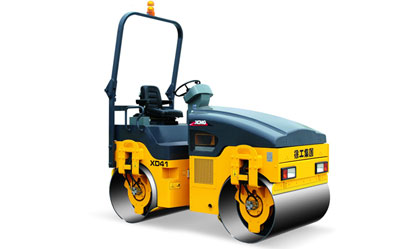

XD41 vibratory roller features high efficiency. The machine is widely used in construction and maintenance of the road, airport, port, dam and building, stadium, park and footwalk.
·It adopts the articulated frame, featuring flexible steering and excellent stability.
·It adopts hydraulic drive, vibration and steering, featuring high reliability.
·The front and rear wheels are equipped with mud-scrapper and watering device.
·The operator could see the border of the drums clearly during the operation. The large clearance of both frames ensure that it is easy to finish the compaction work on the road side.

Model Unit XD41
operating weight kg 4000
static linear load(front/rear) N/cm 154/154
speed km/h 0-10
gradeability in theory % 30
min. turning radius (L/R) mm 2900/4200
min. ground clearance mm 240
wheel base mm 1900
steering angle ±° 30
swing angle ±° 10
vibration frequency Hz 60
vibrating system-max. pressure Mpa 18
steering system-max. pressure Mpa 16
nominal amplitude mm 0.4
centrifugal force kN 40
compacting width mm 1200
drum diameter mm 800
engine model   Detuz F3L2011
rated engine speed r/min 2600
rated engine power kw 33.9
overall dimensions(length/width/height) mm 2865/1300/2937
rated oil wear g/kW.h 218
hydraulic tank capacity L 67
fuel tank capacity L 80
water tank capacity L 150
