XD31                             Home>New equipment>Road building equipment>Compactor

>Compactor >Cold recycling machine >Asphalt concrete paver >Asphalt mixing plant >Motor grader >Cold milling machine >Soil stabilizer mixing plant >Soil stabilizer

Feature

Parameter

Back to the list

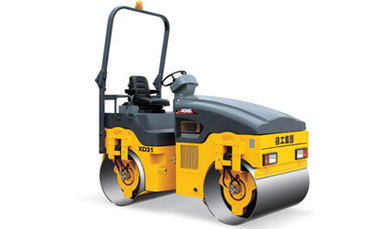

XD31 vibratory roller features high efficiency. The machine is widely used in construction and maintenance of the road, airport, port, dam and building, stadium, park and footwalk.
·It adopts the articulated frame, featuring flexible steering and excellent stability.
·It adopts hydraulic drive, vibration and steering, featuring high reliability.
·The front and rear wheels are equipped with mud-scrapper and watering device.
·The operator could see the border of the drums clearly during the operation. The large clearance of both frames ensure that it is easy to finish the compaction work on the road side.

Model Unit XD31
operating weight kg 3000
static linear load(front/rear) N/cm 116/110
speed km/h 0-10
gradeability in theory % 30
min. turning radius (L/R) mm 2800/4000
min. ground clearance mm 320
wheel base mm 1800
steering angle ±° 30
swing angle ±° 10
vibration frequency Hz 60
vibrating system-max. pressure Mpa 18
steering system-max. pressure Mpa 16
nominal amplitude mm 0.4
centrifugal force kN 34
compacting width mm 1200
drum diameter mm 750
engine model   Detuz F2L2011
rated engine speed r/min 2600
rated engine power kw 22
overall dimensions(length/width/height) mm 2733/1306/2900
rated oil wear g/kW.h 220
hydraulic tank capacity L 55
fuel tank capacity L 80
water tank capacity L 150
