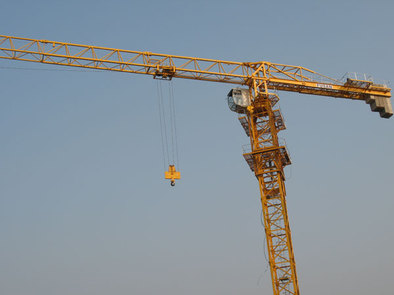

XCP63                                                    Home>New equipment>Crane products>Tower crane

Feature

Parameter

Back to the list

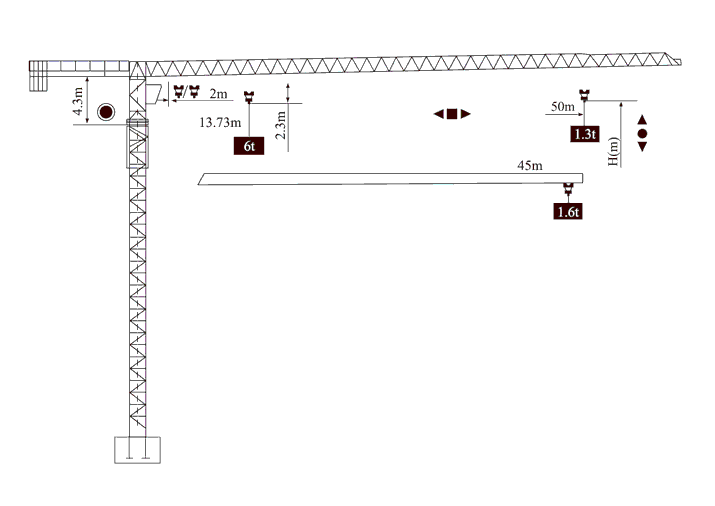

Jib Fall Range 2～13.73 15 18 20 23 25 25.57 28 30
50 IV Load 6 5.45 4.46 3.97 3.39 3.08 3.0 2.7 2.49
II 3 2.7 2.49

Jib Fall Range 33 35 38 40 42 45 48 50
50 IV Load 2.22 2.06 1.86 1.74 1.64 1.5 1.37 1.3
II 2.22 2.06 1.86 1.74 1.64 1.5 1.37 1.3

Jib Fall Range 2～14.44 16 18 20 23 25 26.9
45 IV Load 6 5.45 4.72 4.2 3.59 3.26 3.0
II 3

Jib Fall Range 28 30 33 35 38 40 42 45
45 IV Load 2.86 2.64 2.35 2.19 1.98 1.86 1.7 1.6
II 2.86 2.64 2.35 2.19 1.98 1.86 1.7 1.6
