XCP560                                                  Home>New equipment>Crane products>Tower crane

Feature

Parameter

Back to the list

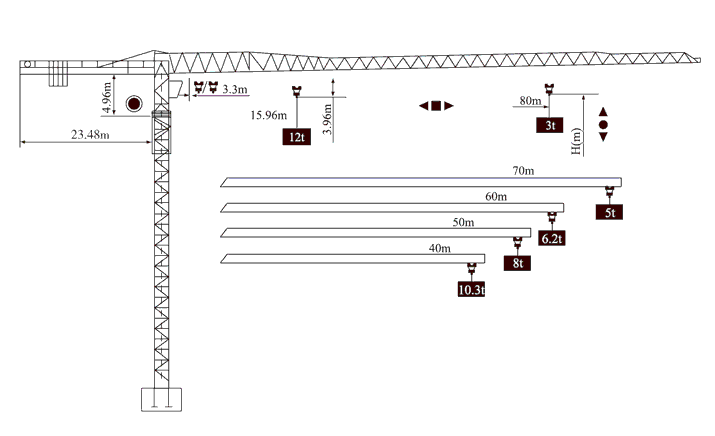

Jib Fall Range 3.3～15.96 20 25 30 35 40 45 50 55 60 65 70 75 80
80 IV Load 20 15.28 11.66 9.3 7.64 6.41 5.46 4.71 4.1 3.59 3.16 2.79 2.48 2.2
II 10 9.96 8.33 7.13 6.2 5.46 4.86 4.36 3.94 3.58 3.27 3.0

Jib Fall Range 3.5～20.38 25 30 35 40 45 50 55 60 65 70
70 IV Load 20 15.74 12.67 10.51 8.91 7.68 6.69 5.9 5.23 4.68 4.2
II 10 9.65 8.43 7.46 6.67 6.02 5.47 5.0

Jib Fall Range 3.3～20.83 25 30 35 40 45 50 55 60
60 IV Load 20 16.15 13 10.8 9.16 7.89 6.89 6.08 5.4
II 10 9.92 8.67 7.68 6.87 6.2

Jib Fall Range 3.3～21.51 25 30 35 40 45 50
50 IV Load 20 16.77 13.52 11.24 9.54 8.24 7.2
II 10 9.03 8.0

Jib Fall Range 3.3～22.84 25 30 35 40
40 IV Load 20 18.01 14.54 12.11 10.3
II 10
