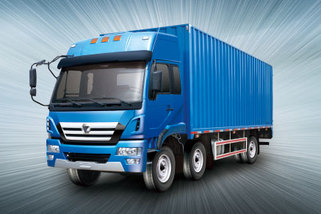

Van Truck 6×2                 Home>New equipment>Transportation equipment>Heavy duty truck

>Semi trailer >Aerial platform >Asphalt distributor >Tipper >Aerial platform fire truck >Bridge inspection platform >Aerial work platform >Hooklifts >Heavy duty truck

Feature Parameter Back to the list --Check for other models-- Dump truck 4x2 Dump truck 6x4 Dump truck 8x4 Cargo truck 6x2 Cargo truck 8x2 Cargo truck 8x4 Wing open box truck Van truck 4x2 Van truck 6x2 Van truck 8x2 Van truck 8x4 Livestock truck 8x2 Livestock truck 8x4 Traction truck 4x2 Traction truck 6x2 Stake truck 4x2 Stake truck 6x2 Stake truck 8x2 Stake truck 8x4 Open truck 6x2 Open truck 8x2 Open truck 8x4 Model NXG5161XXY3 NXG5201XXY3 NXG5200XXY3 NXG5200XXY3A Drive type 6×2 Parameters Max.travel speed(km/h) 90 90 90 90 Max.gradeability(%) 25 25 25 25 Max.braking gradient(%) 20 20 20 20 Min.turning diameter(m) 18 18 18 18 Fuel Tank Capacity(L) 240 240 240 240 Min.ground clearance [full load](mm) 245 245 245 245 Electric system(v) 24 24 24 24 Weight Curb weight(kg) 8450 10500 10500 10500 Rated load(kg) 7850 9800 9800 9800 Max.total weight(kg) 16495 20495 20495 20495 Dimension Total length(mm) 10960 11985 11985 11085 Total width(mm) 2540 2540 2540 2540 Total height [no-load](mm) 3820 3860,3995 3860,3995 3860,3995 Wheel base(mm) 1900+4800 1900+5570 1900+5570 1900+4800 Frame(mm) 240 280 280 280 Leaf spring 9/9/10+8 9/9/12+10 9/9/12+10 9/9/12+10 Main Parts Cab High/flat top High/flat top High/flat top High/flat top Engine CA6DF3-18E3 CA6DE3-18E3 YC6J200-31 CA6DF3-22E3 CA6DE3-22E3 SC9DK240Q3B1 SC8DK260Q3 SC8DK240Q3 YC6A260-30 YC6A240-30 SC8DK260Q3 SC8DK240Q3 YC6A260-30 YC6A240-30 Transmission HY6-85 8JS105TA 8JS125/8JS118 8JS125/8JS118 Front Axle 4.5 ton double 4.5 ton double 153 double 153 double Rear Axle 153 single 457 single 485 single 485 single Tire 9.00-20 10.00-20 10.00-20 11.00-20 11.00-20 11.00R20 11.00-20 11.00R20 Compartment dimension(inner)L×W×H(mm) 8550×2400 ×2400 9500×2400× 2400,2600 9500×2400× 2400,2600 8600×2400× 2400,2600 Model NXG5250XXY3A NXG5250XXY3B NXG5251XXY3 Drive type 6×2 6×2 6×2 Parameters Max.travel speed(km/h) 90 90 90 Max.gradeability(%) 25 25 25 Max.braking gradient(%) 20 20 20 Min.turning diameter(m) 18 18 18 Fuel Tank Capacity(L) 240 240 240 Min.ground clearance [full load](mm) 245 245 245 Electric system(v) 24 24 24 Weight Curb weight(kg) 10500 10500 10780 Rated load(kg) 14280 14280 14000 Max.total weight(kg) 24975 24975 24975 Dimension Total length(mm) 11985 11085 11985 Total width(mm) 2540 2540 2540 Total height [no-load](mm) 3860,3995 3860,3995 3860,3995 Wheel base(mm) 1900+5570 1900+4800 1900+5570 Frame(mm) 280 280 280 Leaf spring 9/9/12+10 9/9/12+10 9/9/12+10 Main Parts Cab High/flat top High/flat top High/flat top Engine SC8DK260Q3 SC8DK240Q3 YC6A260-30 YC6A240-30 SC8DK260Q3 SC8DK240Q3 YC6A260-30 YC6A240-30 CA6DF3-22E3 CA6DE3-22E3 CA6DF3-24E3F YC6A240-33 Transmission 8JS125/8JS118 8JS125           8JS118 8JS105TA Front Axle 153 double 153 double(extra-wide) 153(extra-wide) Rear Axle 485 single 485 single 457 single Tire 11.00-20 11.00R20 11.00-20 11.00R20 10.00-20 11.00-20 Compartment dimension(inner)L×W×H(mm) 9500×2400×2400,2600 8600×2400×2400,2600 9500×2400×2400,2600
