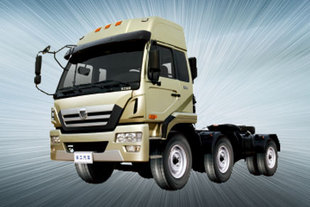

Traction Truck 6×2              Home>New equipment>Transportation equipment>Heavy duty truck

>Semi trailer >Aerial platform >Asphalt distributor >Tipper >Aerial platform fire truck >Bridge inspection platform >Aerial work platform >Hooklifts >Heavy duty truck

Feature Parameter Back to the list --Check for other models-- Dump truck 4x2 Dump truck 6x4 Dump truck 8x4 Cargo truck 6x2 Cargo truck 8x2 Cargo truck 8x4 Wing open box truck Van truck 4x2 Van truck 6x2 Van truck 8x2 Van truck 8x4 Livestock truck 8x2 Livestock truck 8x4 Traction truck 4x2 Traction truck 6x2 Stake truck 4x2 Stake truck 6x2 Stake truck 8x2 Stake truck 8x4 Open truck 6x2 Open truck 8x2 Open truck 8x4 Model NXG4205DP Drive type 6×2 Parameters Max.travel speed(km/h) 90 Max.gradeability(%) 20 Max.braking gradient(%) 20 Min.turning diameter(m) 20 Fuel Tank Capacity(L) 240 Min.ground clearance [full load](mm) 245 Electric system(v) 24V Weight Curb weight(kg) 6500 Rated load(kg) 31300,31700 Max.total weight(kg) 19995 Dimension Total length(mm) 6960 Total width(mm) 2464 Total height [no-load](mm) 2720,3250 Wheel base(mm) 1900+2850 Frame(mm) 280 Leaf spring 9/9/12+10 Main Parts Cab High/flat top Engine SC8DK260Q3 CA6DL1-26E3 CA6DL1-29E3 Transmission 8JS118A Front Axle 5.5 ton double(extra-wide) Rear Axle Steyr Tire 10.00-20 11.00-20
