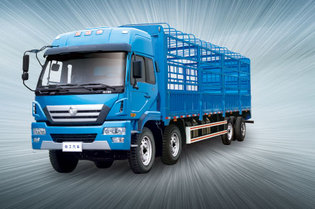

Stake Truck 8×2                 Home>New equipment>Transportation equipment>Heavy duty truck

>Semi trailer >Aerial platform >Asphalt distributor >Tipper >Aerial platform fire truck >Bridge inspection platform >Aerial work platform >Hooklifts >Heavy duty truck

Feature Parameter Back to the list --Check for other models-- Dump truck 4x2 Dump truck 6x4 Dump truck 8x4 Cargo truck 6x2 Cargo truck 8x2 Cargo truck 8x4 Wing open box truck Van truck 4x2 Van truck 6x2 Van truck 8x2 Van truck 8x4 Livestock truck 8x2 Livestock truck 8x4 Traction truck 4x2 Traction truck 6x2 Stake truck 4x2 Stake truck 6x2 Stake truck 8x2 Stake truck 8x4 Open truck 6x2 Open truck 8x2 Open truck 8x4 Model NXG5248CSY3 　 NXG5318CSY 　 NXG5319CSY3A 　 Drive type 8×2 Parameters Max.travel speed(km/h) 90 90 90 Max.gradeability(%) 20 20 20 Max.braking gradient(%) 20 20 20 Min.turning diameter(m) 24 24 24 Fuel Tank Capacity(L) 240/300 240/300 240/300 Min.ground clearance [full load](mm) 245 245 245 Electric system(v) 24 24 24 Weight Curb weight(kg) 11815 11990 24000 Rated load(kg) 11815 18985 30995 Max.total weight(kg) 11250 19550 30995 Dimension Total length(mm) 11940 11940 11940 Total width(mm) 2487 2487 2487 Total height [no-load](mm) 3770 3770 3770 Wheel base(mm) 1900+3770+1800 1900+3770+1800 1900+4530+1350 Frame(mm) 280 280 280 Leaf spring 9/9/9/12+10 9/9/9/12+10 9/9/9/12+10 Main Parts Cab High/flat top High/flat top High/flat top Engine CA6DF3-22E3 CA6DE3-22E3 CA6DE3-24E3F SC9DK240Q3B1 CA6DF3-22E3 CA6DE3-22E3 CA6DF3-24E3 CA6DE3-24E3 CA6DF3-24E3 SC8DK260Q3 CA6DE3-24E3 YC6A260-30 Transmission 8JS105TA 8JS125 8JS125 Front Axle 153 double(extra-wide) 153 extra-wide 153 extra-wide Rear Axle 457 single 457 single 485 single Tire 10.00-20 11.00-20 10.00-20 11.00-20 10.00-20  10.00R20 11.00-20  11.00R20 Compartment dimension(inner)L×W×H(mm) 9500×2320×600 9500×2320×600 9500×2320×600
