Model

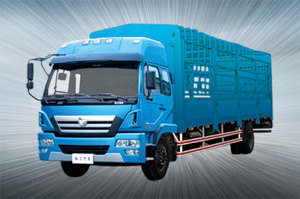

NXG5160CSY3
Drive type
4×2
Parameters
Max.travel speed(km/h)
85
Max.gradeability(%)
22
Max.braking gradient(%)
20
Min.turning diameter(m)
Fuel Tank Capacity(L)
240
Min.ground clearance [full load](mm)
245
Electric system(v)
24
Weight
Curb weight(kg)
6690
Rated load(kg)
9110
Max.total weight(kg)
15995
Dimension
Total length(mm)
8935
Total width(mm)
2495
Total height [no-load](mm)
3700
Wheel base(mm)
5000
Frame(mm)
Leaf spring
10/10+8
Main Parts
Cab
High/flat top
Engine
CA4DF3-17E3
Transmission
HY6-85
Front Axle
4.5 ton
Rear Axle
9 ton 153 single
Tire
10.00-20 9.00-20
Compartment dimension(inner)L×W×H(mm)
6500×2300×600
