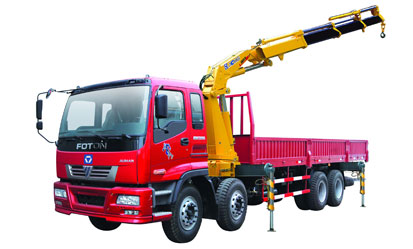

SQ8SK3Q                                          Home>New equipment>Crane products>Truck mounted crane

Feature

Parameter

Back to the list

Model SQ8ZK3Q Unit
Max Lifting Moment 16 t.m
Max Lifting Capacity 8000 kg
Recommend Power Needed At Recommend Oil Flow 28 kw
Max Oil Flow of Hydraulic System 40 L/mi
Rated Pressure Of Hydraulic System 28 MPa
Oil Tank Capacity 160 L
Rotation Angle (360°)All Rotation 。
Crane Weight 2970 kg
Installation Space 1150 mm
Choice of Chassis CA1176PK2L9T3A95 柳特；CA1170PK2L7T3EA80青岛解放； CA1240PK2L7T4EA81青岛；HFC1202KR1K3江淮；EQ5161GFJ7东风；BJ1317VNPJJ-S5北汽福田；EQ5201GFJ6东风；CA1200PK2L7T3EA80解放；LZ1160LCMT东风柳汽DFL1250A9东风；BJ5317ZNPJJ-S北汽福田；CA1253P7K2L11T1E 解放；EQ1252GFJ东风；ND1255B50J 北奔；
SQ8ZK3Q Lifting capability diagram
Working radius (m) 2 4.175 5.995 7.785 9.755
Lifting capacity (kg) 8000 3700 2400 1700 1250
