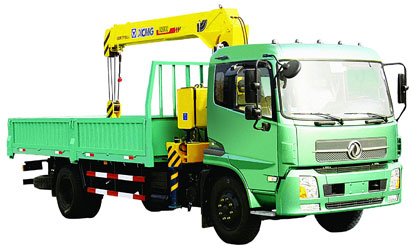

SQ5SK2Q/K3Q                             Home>New equipment>Crane products>Truck mounted crane

Feature Parameter Back to the list --Check for other models-- SQ2SK1Q/K2Q SQ3.2SK1Q/K2Q SQ4SK2Q/SQ4SK3Q SQ5SK2Q/K3Q SQ6.3ZK2Q/SQ6.3ZK3Q SQ1ZK2Q/SQ2ZK1 SQ4ZK2 SQ5ZK2Q/SQ5ZK3Q SQ6.3SK2Q/SQ6.3SK3Q SQ8SK3Q SQ8ZK3Q SQ10SK3Q SQ10ZK3Q SQ12SK3Q SQ12ZK3Q SQ14SK4Q SQ14ZK4Q SQ16SK4Q SQ16ZK4Q SQ25ZK6Q SQ3.2ZK1/SQ3.2ZK2

Model	SQ5SK2Q/SQ5SK3Q	Unit
Max Lifting Capacity	5000	kg
Max Lifting Moment	12.5	T.M
Recommend Powe	18	kw
Max Oil Flow of Hydraulic System	32	L/min
Max Pressure of Hydraulic System	18	MPa
Oil Tank Capacit	90	L
Rotation Angle	All Rotation
Crane Weight	2074/2170	kg
Installation Space	900	mm
Choice of Chassis	CA1140PK2L3EA80青岛；DFL1140B东风；EQ1126KJ1东风；HFC1132KR1K3江淮；LZ1120LAPT东风柳汽；EQ1141NBJ2东风；EQ5201GFJ6东风；EQ5201GFJ6东风；NXG1160D3ZAL1X徐工

SQ2SK1Q Lifting capability diagram

Working radius(m) 2.5 3.62 6.05 8.5 Lifting capacity(kg) 5000 2800 1500 1100

SQ2SK2Q Lifting capability diagram

Working radius(m) 2.5 3.62 6.05 8.5 11 Lifting capacity(kg) 5000 2800 1500 1100 400
