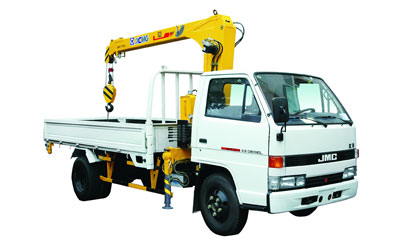

SQ2SK1Q/K2Q                                   Home>New equipment>Crane products>Truck mounted crane

Feature Parameter Back to the list --Check for other models-- SQ2SK1Q/K2Q SQ3.2SK1Q/K2Q SQ4SK2Q/SQ4SK3Q SQ5SK2Q/K3Q SQ6.3ZK2Q/SQ6.3ZK3Q SQ1ZK2Q/SQ2ZK1 SQ4ZK2 SQ5ZK2Q/SQ5ZK3Q SQ6.3SK2Q/SQ6.3SK3Q SQ8SK3Q SQ8ZK3Q SQ10SK3Q SQ10ZK3Q SQ12SK3Q SQ12ZK3Q SQ14SK4Q SQ14ZK4Q SQ16SK4Q SQ16ZK4Q SQ25ZK6Q SQ3.2ZK1/SQ3.2ZK2

Model	SQ2SK1Q/SQ2SK2Q	Unit
Max Lifting Capacity	2100	kg
Max Lifting Moment	4.2	T.M
Recommend Power	9	kw
Max Oil Flow of Hydraulic System	20	L/min
Max Pressure of Hydraulic System	16	MPa
Oil Tank Capacity	25	L
Rotation Angle	All Rotation
Crane Weight	640/818	kg
Installation Space	850	mm
Choice of Chassis	HFC1065KRT；JX1050TGB23；JX1060TSG23；EQ1060GJ20D3；EQ1092FJ；EQ1092FJ1；EQ1060TJ20D3

SQ2SK1Q Lifting capability diagram

Working radius (m) 2.10 2.50 3.00 Lifting capacity (kg) 2100 1800 1000

SQ2SK2Q Lifting capability diagram

Working radius (m) 2.10 2.50 3.00 Lifting capacity (kg) 2100 1600 1000
