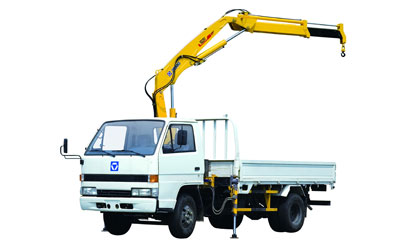

SQ1ZK1Q/SQ2ZK1                                               Home>New equipment>Crane products>Truck mounted crane

Feature

Parameter

Back to the list

Model SQ1ZK2Q SQ2ZK1 Unit
Max Lifting Moment 2 3.2 t.m
Max Lifting Capacity 1400 2000 kg
Recommend Power Needed At Recommend Oil Flow 7 9 kw
Max Oil Flow of Hydraulic System 16 20 L/min
Rated Pressure Of Hydraulic System 20 20 MPa
Oil Tank Capacity 20 25 L
Rotation Angle (360°)All Rotation 370 °
Crane Weight 450 608 kg
Installation Space 550 680 mm
Choice of Chassis HFC1065KRT江淮；NKR77PLLWCJAY 庆铃； EQ1092FJ1东风；EQ1092FJ东风；NKR77PLLWCJAY 庆铃；EQ1060GJ20D3东风；JX1060TSG23江铃；JX1050TGB23江铃；HFC1065KRT江淮； 　
SQ1ZK2Q Lifting capability diagram
Working radius (m) 1.33 2.25 3.2
Lifting capacity (kg) 1500 850 550
SQ2ZK1 Lifting capability diagram
Working radius (m) 1.5 3.53 4.78
Lifting capacity (kg) 2000 900 600

-->
