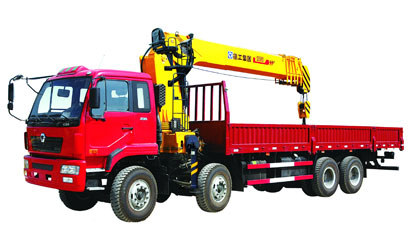

SQ16SK4Q                                     Home>New equipment>Crane products>Truck mounted crane

Feature

Parameter

Back to the list

Model SQ16SK4Q Unit
Max Lifting Capacity 16000 kg
Max Lifting Moment 40 T.M
Recommend Power 45 kw
Max Oil Flow of Hydraulic System 80 L/min
Max Pressure of Hydraulic System 28 MPa
Oil Tank Capacity 260 L
Rotation Angle All Rotation
Crane Weight 6020 kg
Installation Space 1400 mm
Choice of Chassis BJ1317VNPJJ-S5北汽福田；NXG1310D3ZEX徐工；DFL1311A3东风 ；
SQ16SK4Q Lifting capability diagram
Working radius(m) 2.7 5.6 8.5 11.5 14.5 18.5
Lifting capacity(kg) 16000 7000 4200 3200  2200 1000
