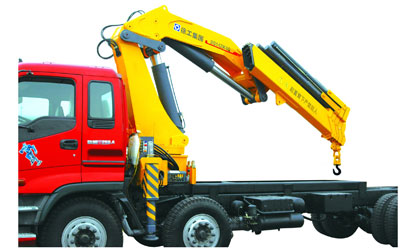

SQ14ZK4Q                                    Home>New equipment>Crane products>Truck mounted crane

Feature

Parameter

Back to the list

Model SQ14ZK4Q Unit
Max Lifting Moment 35 t.m
Max Lifting Capacity 14000 kg
Recommend Power Needed At Recommend Oil Flow 32 kw
Max Oil Flow of Hydraulic System 63 L/min
Rated Pressure Of Hydraulic System 26 MPa
Oil Tank Capacity 220 L
Rotation Angle (360°)All Rotation 。
Crane Weight 4800 kg
Installation Space 1300 mm
Choice of Chassis BJ1317VNPJJ-S5福田；NXG1310D3ZEX徐工；
SQ14ZK4Q Lifting capability diagram
Working radius(m) 2.5 4.046 5.826  7.646 9.516 11.4
Lifting capacity(kg) 140000  8400 5478 4080 3148 245
