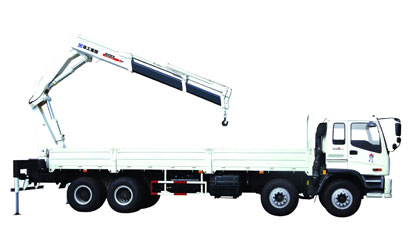

SQ10ZK3Q                                   Home>New equipment>Crane products>Truck mounted crane

Feature

Parameter

Back to the list

Model SQ10ZK3Q Unit
Max Lifting Moment 20 t.m
Max Lifting Capacity 10000 kg
Recommend Power Needed At Recommend Oil Flow 28 kw
Max Oil Flow of Hydraulic System 40 L/min
Rated Pressure Of Hydraulic System 28 MPa
Oil Tank Capacity 160 L
Rotation Angle (360°)All Rotation 。
Crane Weight 3477 kg
Installation Space 1150 mm
Choice of Chassis DFL1250A9 东风天龙；CA1240PK2L7T4EA81青岛；HFC1202KR1K3江淮；EQ5201GFJ6东风；CA1200PK2L7T3EA80解放；BJ1317VNPJJ-S5北汽福田；BJ5253ZKPJJ北汽福田；CA1253P7K2L11T1E 解放；EQ1252GFJ东风；DFL1253AX东风；
SQ10ZK3Q Lifting capability diagram
Working radius (m) 2 4.17 5.99 7.87 9.75
Lifting capacity (kg) 10000  4600 3050 2280 1700
