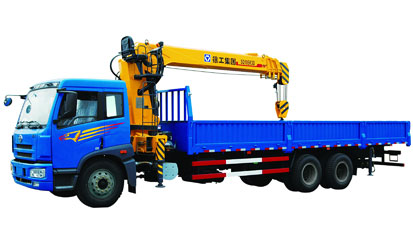

SQ10SK3Q                                     Home>New equipment>Crane products>Truck mounted crane

Feature

Parameter

Back to the list

Model SQ10SK3Q Unit
Max Lifting Capacity 10000 kg
Max Lifting Moment 25 T.M
Recommend Power 28 kw
Max Oil Flow of Hydraulic System 63 L/min
Max Pressure of Hydraulic System 26 MPa
Oil Tank Capacity 160 L
Rotation Angle All Rotation
Crane Weight 3800 kg
Installation Space 1150 mm
Choice of Chassis DFL1250A9 东风天龙；CA1240PK2L7T4EA81青岛；CA1200PK2L7T3EA80解放；BJ1317VNPJJ-S5北汽福田；BJ5253ZKPJJ北汽福田；CA1253P7K2L11T1E 解放；EQ1252GFJ东风；DFL1253AX东风；
SQ10SK3Q Lifting capability diagram
Working radius (m) 2.5 4.5 7 9 12
Lifting capacity (kg) 10000 5500 3200 2300 1500
　

-->
