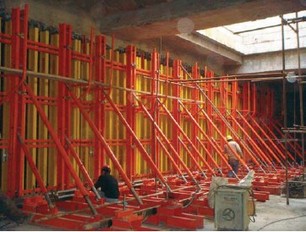

RIMMCA Single Side Formwork SSF is designed for the project which is not possible to place a form-tie through the formwork elements or panels to anchor them to the opposing formwork. "Single Side Formwork SSF " enable the concrete forces to be safely transferred. Its max pouring height can be up to 8.0m high.

Advantages:

1. Tensile forces are reliably transferred by means of diagonal anchors.

2. Modular vertical stacking facility. Optimum adaptability to the required pourheight, from 4.00 m up to max. 8.0 m.

3. Adapts to uneven ground by means of spindles with articulated footplates.

4. Adjusting for the different fresh-concrete pressures required is easy and economical�Csimply increase or decrease the spacing between the supporting frames, as appropriate.

5. The high-speed repositioning can be by crane or by traveling unit on rails or
rollers.
