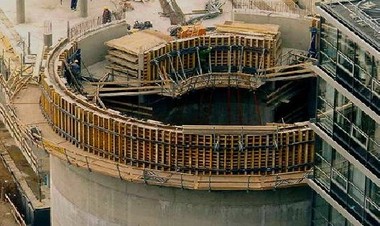

RIMMACA Adjustable Circular Formwork ACF H20 is designed for forming circular walls, as required in e.g. sewage treatment plants, for spiral ramps in car-parks and in circular tanks.

Advantages:

1. Continuous adaptation to different radii by means of spindles, exact curves
from a radius 2.50m upward.

2. Ideal height grid provided by the element heights of:
    0.90m;
    1.80m;
    2.70m.
3. Permitted fresh-concrete pressure: 60 kN/m2.
