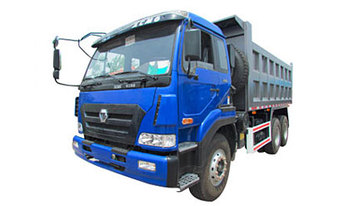

NXG3251D3KC                    Home>New equipment>Transportation equipment>Tipper

>Semi trailer >Aerial platform >Asphalt distributor >Tipper >Aerial platform fire truck >Bridge inspection platform >Aerial work platform >Hooklifts >Heavy duty truck

Feature Parameter Back to the list --Check for other models-- NXG3251D3KC NCL3258/M Dimension NXG3251D3KC　 Overall size (length×width×height) 8115×2495×3380mm Cargobody size (length×width×height) 5400×2300×1400mm Wheelbase 3650+1350mm Wheel tread (Front/Rear) 2057/1848mm Min. ground clearance 290mm Kerb mass 12400kg Gross vehicle weight 24995kg Rated loading capacity 12400kg Max. travel speed 77km/h Min. turning diameter 16m Max. gradeability 30% Approach angle 26° Departure angle 20° Fuel consumption 29(L/100 km) Engine water-cooling, turbocharging and intercooling, Euro Ⅲ emission standard, direct injection diesel Rated output at 1,900rpm 375HP Max. torque at 1200r/pm 1500N.m Rated Fuel consumption 196g/(KW.h) Driver’s Cab tiltable cab , with air-conditioner & ventilation， adjustable driver’s seat ,single sleeper Transmission Type 12JSD180TA 12 forward/1 reverse Steering hydraulic steering with power assistance Front axle 7.5T Elliot type, I beam section Rear axle 26T Ratio: 5.73 Clutch Single-plate dry coil-spring clutch, diameter 430, hydraulically operating with air assistance Service brake dual circuit compressed air brake Parking brake spring energy operating on rear wheels Auxiliary brake engine exhaust brake Rims 8.50V-20 Tyres 12.00R-20 Operating voltage 24V Alternator 70A/28V Batteries 6-QAW-165 Capacity 240 L
