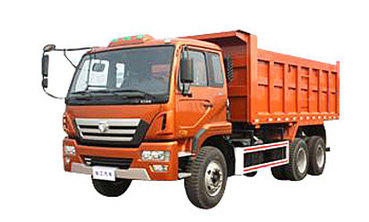

NCL3258/M                       Home>New equipment>Transportation equipment>Tipper

>Semi trailer >Aerial platform >Asphalt distributor >Tipper >Aerial platform fire truck >Bridge inspection platform >Aerial work platform >Hooklifts >Heavy duty truck

Feature Parameter Back to the list --Check for other models-- NXG3251D3KC NCL3258/M Dimension NCL3258/M Overall size (length×width×height) 7910×2490×3150mm Cargobody size (length×width×height) 5200×2300×1400mm Wheelbase 3650+1350mm Wheel tread (Front/Rear) 2032/1848mm Min. ground clearancee 270mm Kerb mass 10480kgg Gross vehicle weight 24075kg Rated loading capacityy 13400kg Max. travel speedd 80km/h Min. turning diameter 16m Max. gradeability 30% Approach angle 26° Departure angle 26° Fuel consumption 28(L/100 km) Engine 6C280-2,water-cooling,turbocharging and intercooling, Euro Ⅱ emission standard,direct injection diesel Rated output at 1,900rpmm 280HP(206kw) Max. torque at 1200r/pm 1117N.m Rated Fuel consumption 205g/(KW.h) Driver’s Cab tiltable cab , with air-conditioner & ventilation， adjustable driver’s seat ,single sleeper Transmission Type 9JS135 9 forward/1 reverse Steering hydraulic steering with power assistance Front axle 6.5T Elliot type, I beam section Rear axle 26T double drive axle, pressing-welding axle housing, full-float semi-shaft, single stage hyperbolic geared speed reducer Clutch Single-plate dry coil-spring clutch, diameter 430, hydraulically operating with air assistance Service brake dual circuit compressed air brake Parking brake spring energy operating on rear wheels Auxiliary brake engine exhaust brake Rims 8.00-20 Tyres 12.00R-20 Operating voltage 24V Alternator 70A/28V Batteries 6-QAW-165 Capacity 240 L
