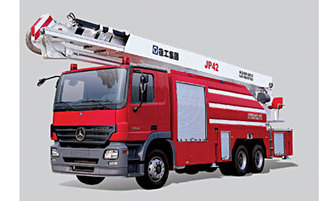

JP42                        Home>New equipment>Transportation equipment>Aerial platform fire truck

>Semi trailer >Aerial platform >Asphalt distributor >Tipper >Aerial platform fire truck >Bridge inspection platform >Aerial work platform >Hooklifts >Heavy duty truck

Feature

Parameter

Back to the list

Germany Benz Actros 3344 chassis, 320kw; 4 telescopic booms and 1 folded boom structure; the large capacity fire-fighting liquid container of 5-ton water and 3-ton foam, American Darley PSP1500 water pump and imported electrical monitor; electro-hydraulic proportional control technology, high efficiency in vehicle rescuing and easy operation; with 40m wire controlling and fire monitoring system, it is advanced in the liquid capacity and fire-fighting capacity.

Main technical data in travel configuration

Category

Item

Unit

Parameter

Dimension

Overall length

mm

12170

Overall height

mm

3940

Overall width

mm

2500

Wheel base

Axles 1 and 2

mm

4500

Axles 2 and 3

mm

1350

Tread

Front axle

mm

2035

Rear axle

mm

1804

Weight

Extinguishant rated load weight

Water

kg

4900/3000

Foam

kg

4900/3000

Total vehicle curb weight

23950

Front axle

kg

5750

Dual rear axles

kg

18200

Weight with full load

32000

Front axle

kg

7000

Dual rear axles

kg

25000

Travel performance


Max. travel speed

km/h

≥90

Min. turning diameter

m

≤20

Approach angle

°

16

Departure angle

°

9

Braking distance(at 30km/h)

m

≤10

Min. ground clearance

mm

290

Max. gradeability

%

≥25%

Main technical data for operation

Main performance

Rated working height

m

42

Max. working radius

m

19

Outrigger span(longitudinal×lateral)

m

6.0×5.4

Elevating range

°

﹣3~80

Working speed

Boom deploying time

S

≤110

Outrigger extending time

S

≤30

Slewing speed

r/min

0~2

Fire-fighting performance

Fire pump rated flow

L/s

60

Fire pump rated pressure

MPa

1.7

Water monitor

Water monitor rated reach

m

≥80

Water monitor rated flow

L/s

60

Water monitor rated pressure

MPa

≤0.8

Foam monitor rated reach

m

≥60

Foam monitor rated flow

L/s

48

Foam monitor rated pressure

MPa

≤0.9

Nozzle travel range

Up and down:-135°~0° Left and right:±107°
