DG32C                        Home>New equipment>Transportation equipment>Aerial platform fire truck

>Semi trailer >Aerial platform >Asphalt distributor >Tipper >Aerial platform fire truck >Bridge inspection platform >Aerial work platform >Hooklifts >Heavy duty truck

Feature

Parameter

Back to the list

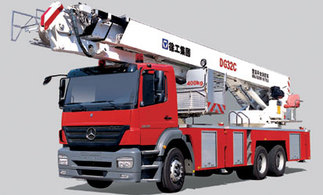

Germany Benz Axor 2628 chassis; 3 telescopic booms and 1 folded boom structure; the working platform reserves the escape channel, and rescue through multiple channels; equipped with integrated lubricating system, the machine can work on one side; electro-hydraulic proportional control technology, high efficiency in vehicle rescuing and easy operation; with 19 protecting devices, the machine leads top in terms of the reliability in China.

Main technical data in travel configuration

Category

Item

Unit

Parameter

Dimension

Overall length

mm

11850

Overall height

mm

3900

Overall width

mm

2500

Wheel base

Axles 1 and 2

mm

4500

Axles 2 and 3

mm

1350

Tread

Front axle

mm

2053

Rear axle

mm

1802

Weight

Weight with full load

kg

23850

Axle load

Front axle

kg

6000

Dual rear axles

kg

17850

Travel performance


Max. travel speed

km/h

85

Min. turning diameter

m

≤20.3

Approach angle

°

17

Departure angle

°

10

Braking distance(at 30km/h)

m

≤10

Min. ground clearance

mm

204

Max. gradeability

%

≥25

Main technical data for operation

Main performance

Rated working height

m

32.5

Rated load

kg

400

Max. working radius

m

19

Outrigger span(longitudinal×lateral)

m

6000×5800

Elevating range

°

﹣3~80

Working speed


Boom deploying time

S

≤150

Outrigger extending time

S

≤30

Slewing speed

r/min

0~1.5

Fire-fighting performance

Water monitor rated flow

L/s

50

Water monitor rated pressure

MPa

≤1.0

Water monitor rated reach

m

≥65
