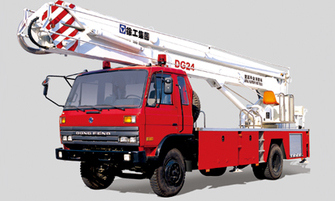

DG24                        Home>New equipment>Transportation equipment>Aerial platform fire truck

>Semi trailer >Aerial platform >Asphalt distributor >Tipper >Aerial platform fire truck >Bridge inspection platform >Aerial work platform >Hooklifts >Heavy duty truck

Feature Parameter Back to the list --Check for other models-- JP25B DG22A JP32A JP42 JP25 JP32 DG24 CDZ32B DG40C DG53 DG32C DG22 DG68 Main technical data in travel configuration Category Item Unit  Parameter Dimension Overall length mm 11380 Overall height mm 3640 Overall width mm 2500 Wheel base mm 4700 Tread Front axle mm 1900 Rear axle mm 1800 Weight Total vehicle curb weight kg 11285 Axle load Front axle kg 3475 Rear axle kg 7810 Weight with full load kg 11510 Axle load Front axle kg 3700 Rear axle kg 7810 Max. travel speed km/h ≥85 Min. turning diameter m ≤18 Approach angle ° ≥30 Departure angle ° ≥10 Travel performance 　 Braking distance(at 30km/h) m ≤10 Min. ground clearance mm 248 Fuel consumption of per 100km L ≤21 Max. gradeability % ≥27 Main technical data for operation Main performance Rated working height m 24.5 Max. working radius m 14.3 Platform rated load kg 270 Outrigger span m 4400×4200 Firefighting electrical water monitor Rated flow L／s 30 Injection pressure MPa ≤1.0 Water monitor reach m ≥55 Nozzle travel range ° Up and down：-15～70 Left and right：±135 Boom elevating range 1st boom ° 1～80 2nd boom ° 0～75 3rd boom ° 76～180 Working speed Boom deploying time S ≤110 Outrigger extending time S ≤30
