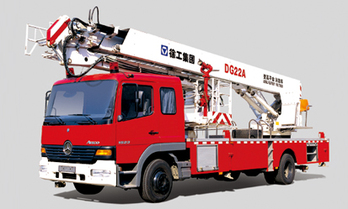

DG22A                        Home>New equipment>Transportation equipment>Aerial platform fire truck

>Semi trailer >Aerial platform >Asphalt distributor >Tipper >Aerial platform fire truck >Bridge inspection platform >Aerial work platform >Hooklifts >Heavy duty truck

Feature

Parameter

Back to the list

Germany Benz Atego1523 chassis; 2 telescopic booms and 1 folded boom structure featuring reasonable structure and large strength reservation coefficient; the largest load of the working platform is 300kg; electro-hydraulic proportional control technology, high efficiency in vehicle rescuing and easy operation; with 11 protecting devices, it is one of the most reliable machine in China.

Main technical data in travel configuration

Category

Item

Unit

 Parameter

Dimension

Overall length

mm

10180

Overall height

mm

3650

Overall width

mm

2500

Wheel base

mm

5360

Weight with full load

kg

14750

Axle load

Front axle

kg

5150

Rear axle

kg

9600

Weight

Max. travel speed

km/h

≥90

Min. turning diameter

m

≤19.4

Approach angle

°

≥18

Departure angle

°

≥10

Travel performance


Braking distance(at 30km/h)

m

≤10

Min. ground clearance

mm

170

Max. gradeability

%

≥25

Main technical data for operation

Main performance

Rated working height

m

22

Work platform rated load

kg

300

Max. working radius

m

14

Outrigger span(longitudinal×lateral)

m

5.5×5.5

Elevating range

°

﹣3~80

Working speed

Boom deploying time

S

≤150

Outrigger extending time

S

≤30

Slewing speed

r/min

0~1.5

Fire-fighting performance

Water monitor flow


L/s

40

Water monitor rated pressure

MPa

≤1.0

Water monitor reach

m

≥60
