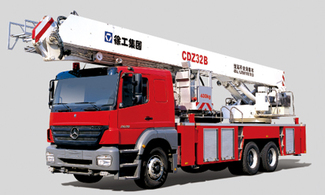

CDZ32B                        Home>New equipment>Transportation equipment>Aerial platform fire truck

>Semi trailer >Aerial platform >Asphalt distributor >Tipper >Aerial platform fire truck >Bridge inspection platform >Aerial work platform >Hooklifts >Heavy duty truck

Feature Parameter Back to the list --Check for other models-- JP25B DG22A JP32A JP42 JP25 JP32 DG24 CDZ32B DG40C DG53 DG32C DG22 DG68 Main technical data in travel configuration Category Item Unit Parameter Dimension Overall length mm 11380 Overall height mm 3900 Overall width mm 2500 Wheel base Axles 1 and 2 mm 4500 Axles 2 and 3 mm 1350 Tread Front axle mm 2053 Rear axle mm 1802 Weight Weight with full load kg 23950 Axle load Front axle kg 6450 Dual rear axles kg 17500 Travel performance     Max. travel speed km/h 85 Min. turning diameter m ≤24 Approach angle ° 16 Departure angle ° 10 Braking distance(at 30km/h) m ≤10 Min. ground clearance mm 204 Max. gradeability % ≥25 Main technical data for operation Main performance Rated working height m 32 Rated load kg 400 Max. working radius （Full extending/semi-extending） m 19/15 Outrigger span(longitudinal×lateral) m 6650×5800 Elevating range ° ﹣3～80 Working speed 　 Boom deploying time S ≤130 Outrigger extending time S ≤40 Slewing speed r／min 0～1.5 Fire-fighting performance Water monitor rated flow L／s 50 Water monitor rated pressure MPa ≤1.0 Water monitor rated reach m ≥65 Fire pump rated flow L／s 50 Fire pump rated outlet pressure MPa 1.8
