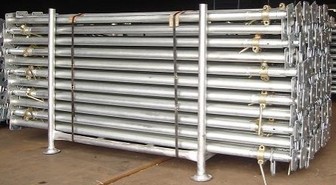

AUP Prop(Acrow prop type)
Welded by robot, produced according to AS 3610 Standard, carrying working load capacity (8KN-25KN) at different extension, 1.83 meters, 2.8 meters, 3.4 meters, 3.97 meters and 4.9meters with cold galvanization.

Components details:
1. Prop head:150x150mm plates with holes for securing to timber beams or facilitating the use of accessories.
2. Prop inner tube:48.0mm O.D., with holes at 152.5mm centers, tube diameter enables standard scaffold tube and couplers to be used for balancing purposes.
3. Prop outer tube:60.3mm O.D., bottom plate identical to prop head, reduction couplers enable standard scaffold tube to be connected to outer tube for bracing purposes.
3. Welding quality: all welds to be neat, clean, full and penetrating to AS/BS.
4. Surface finishing: cold galvanization.
